Portable Engine Pump(Small Type ) F-043

  • Use : Water Transfer and Supply Equipment
    for Wildfire Suppression

REQUEST A QUOTE
PRODUCT LIST

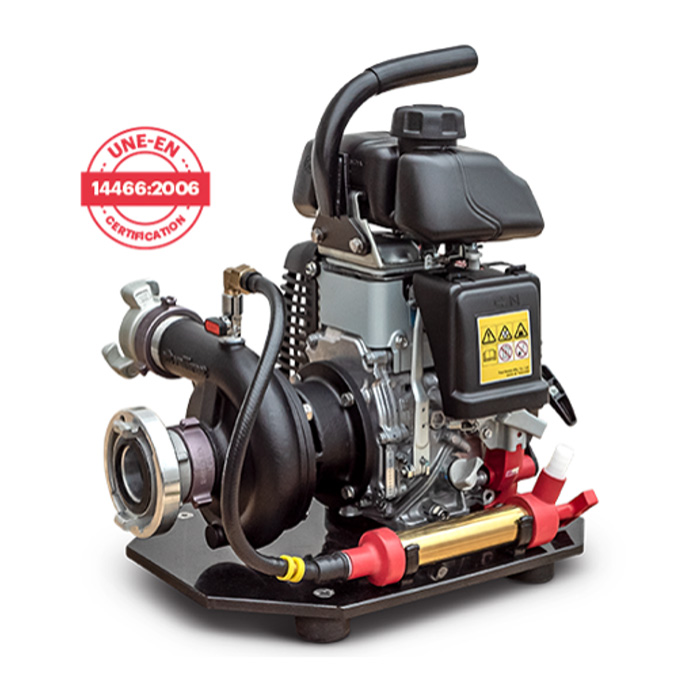

Small Type [ BH-1 ]

Engine Honda GX50 Weight 9.5kg
Pump Type VFT 1-stage Power Output 2.1HP
Maximum Flow Rate 260L/min
Maximum Pressure 6.9bar
  • New portable engine pump equipped with a single-stage centrifugal pump and a 4-stroke Honda engine.
  • Compact, lightweight (9.5kg), durable, and suitable for a wide range of applications.
  • Constructed with high-grade aluminum and stainless steel components.
  • Portability  – Lightweight design for easy transportation.
    – Ergonomic top handle for convenient carrying.
  • Durability
    – Manufactured from lightweight aluminum alloy.- High availability of quality components and spare parts.
    – Flat black polyethylene base incorporates vibration-damping elements (silent blocks) for enhanced durability.
  • Honda GXH50 Engine   – 4-stroke gasoline engine certified by CARB and EPA.- Equipped with a clutch for easy operation, allowing water discharge to be stopped without
    shutting down the engine.
  • Single-Stage Centrifugal Pump   – Corrosion-resistant aluminum construction for long- term durability.
    – Stainless steel shaft connected to the engine crankshaft.
    – High-quality mechanical seal and aluminum turbine.
    – Compatible with single-stage foam applications.

Small Type [ Wick 100-4H]

  • Engine : Honda GX50
  • Dimensions : 360 × 280 × 410 mm
  • Dry Weight : 9.16 kg
  • Engine Type : 4-Stroke
  • Displacement : 49.4 cc
  • Power Output : Max. 2.5 HP / Rated 2.1 HP
  • Fuel Tank Capacity : 0.77 L (Approx. 40 Minutes of Continuous Operation on a Full Tank)
  • Maximum Pressure : 7.2 bar
  • Maximum Flow Rate : 260 L/min

    [ WICK® 100-4H PORTABLE FIRE PUMP ]
  • Product No. : 71WICK100-4HAP
  • Configuration : Equipped with a Manual Priming Pump

Small Type [ Wick 100-4M]

  • Engine : Honda GX50
  • Dimensions : 360 × 280 × 300 mm
  • Dry Weight : 7.9 kg
  • Engine Type : 4-Stroke, Multi-Position Operation
  • Displacement : 48 cc
  • Power Output : Max. 2 HP
  • Fuel Tank Capacity : 0.63 L (Approx. 40 MinuTank)
  • Maximum Pressure : Approx. 6.9 bar
  • Maximum Flow Rate : Approx. 265 L/min

    [ WICK® 100-4M MULTI-PURPOSE FIRE PUMP ]
  • Product No. : 71WICK100-4HMBP
  • Product Type : Multi-Position Fire Pump
  • Carrying Method : Backpack Harness for Carrying on Slopes
  • Configuration : Includes a Manual Priming Pump
