CIJUN

Medium pump set

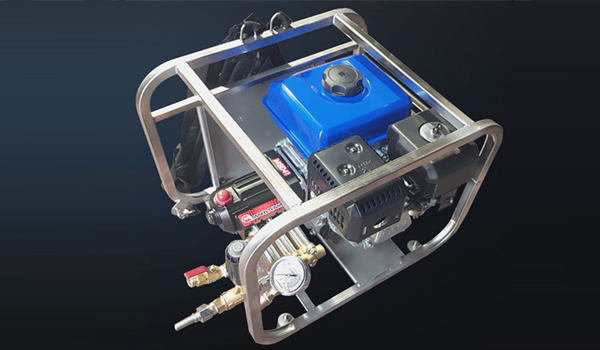

This engine pump is a new connection type product, and the energy loss rate is minimized by changing the connection between the existing engine and the pump from a belt to a series connection method.

At a close distance, the amount and force of water supplied increased, and water was stably supplied even at high altitude.

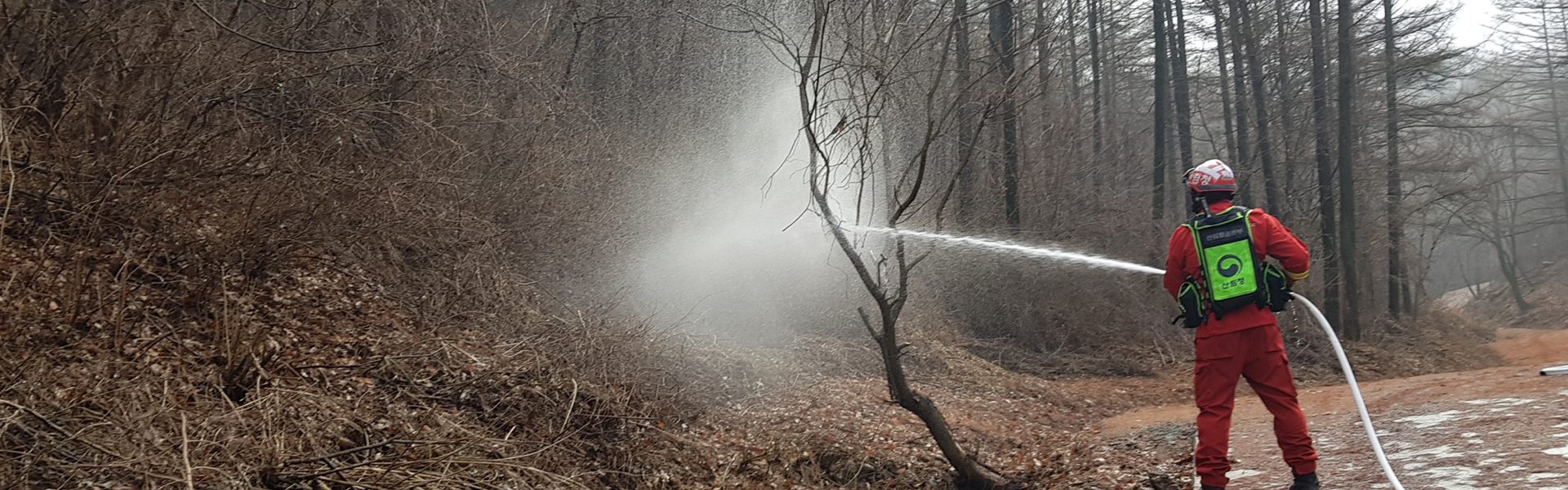

The embers remain hidden in various places even after aerial suppression. Since these embers cause the recurrence of forest fires, on ground firefighting is essential for complete suppression.

However, since it is difficult to supply water with human power, the Mechanical System was introduced to effectively and quickly extinguish forest fires.

The system enables long-distance or high areas water supply through hoses using small, medium-sized pumps or fire trucks, and can implement various forest fire extinguishing tactics depending on the size and type of forest fires.

In addition to the engine pump, the system consists of main hoses, spray guns, distributors, portable water tanks, branch hoses, and movable pulleys.

System include

main hoses

spray guns

portable water tanks

distributors

branch hoses

movable pulleys

Technical specifications

H.P	7.5hp	MAXIMUM PRESSURE	60 kgf/cm
Weight	30 KG	MAXIMUM FLOW	35L/min
Dimensions (L x W x H)	40 x 55x 45 CM	STARTING SYSTEM	Recoil starter
OUTLET	13mm	CONNECTION	Serial type
